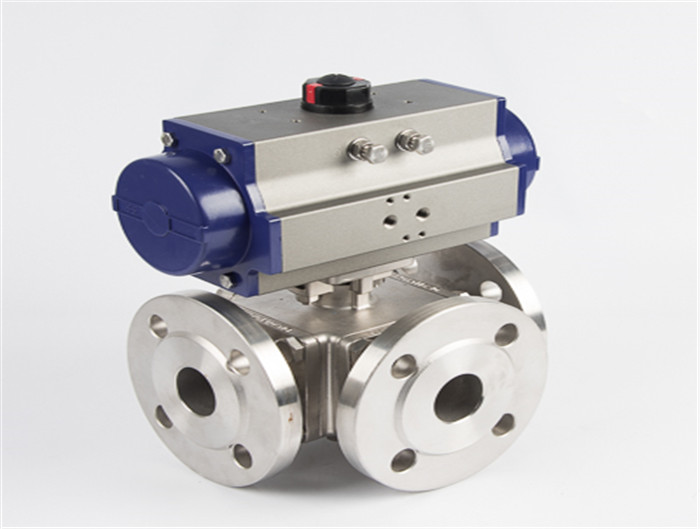

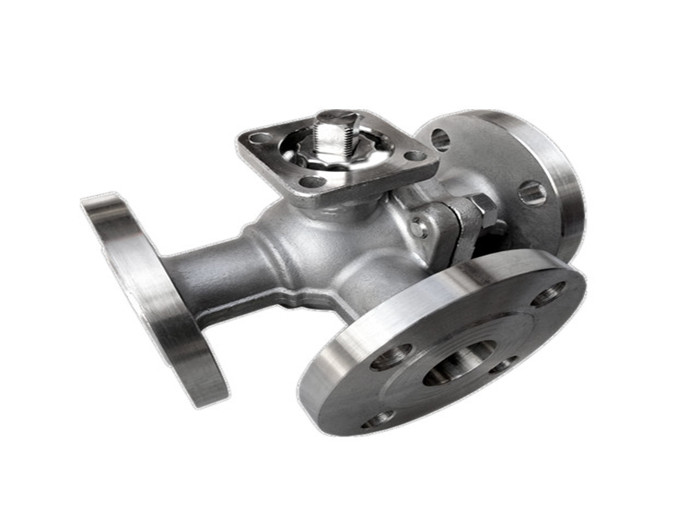

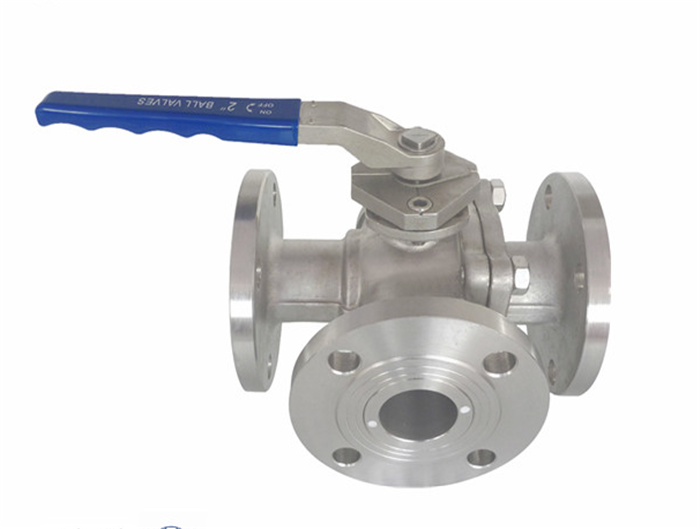

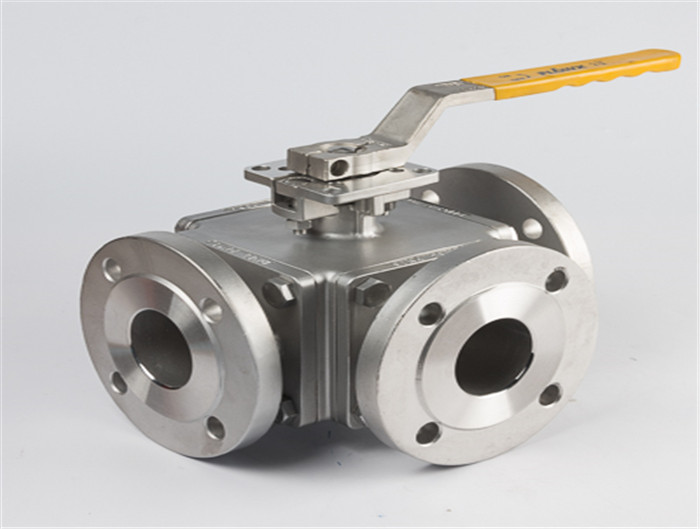

Three Way Ball Valve Flanged
  • Three Way Ball Valve Flanged
  • Three Way Ball Valve Flanged
  • Three Way Ball Valve Flanged
  • Three Way Ball Valve Flanged
Three Way Ball Valve FlangedThree Way Ball Valve FlangedThree Way Ball Valve FlangedThree Way Ball Valve Flanged

Product Name:Three Way Ball Valve Flanged

Types:3 Way Flanged

Inquire Now

None

Next

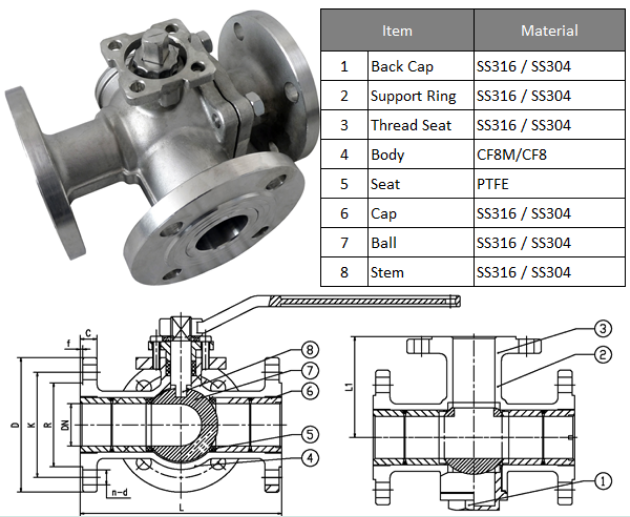

Three Way Ball Valve Flanged

Pressure: 150LB, 300LB
Port: Full Port
Blow-out Proof Stem
ISO 5211 Mounting Pad
Size: 1/2"-4"
Body: CF8M, CF8, ASTM A216 WCB
Seat: RTFE / PTFE
End: Flanged ANSI B16.5
Operation: Handle Lever
Option: Lockable Handle
Suitable medium: Water, oil, air and some corrosive liquid
Temperature: -20~232°C
Design: ANSI B16.34
Check and testing: API 508

Three Way Ball Valve Flanged
