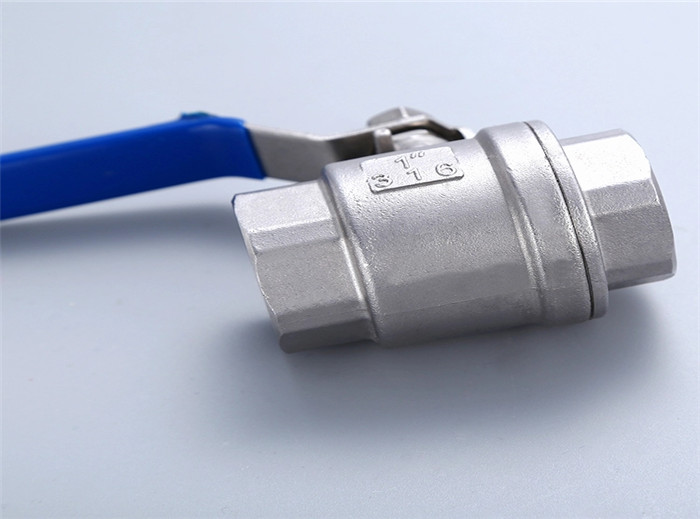

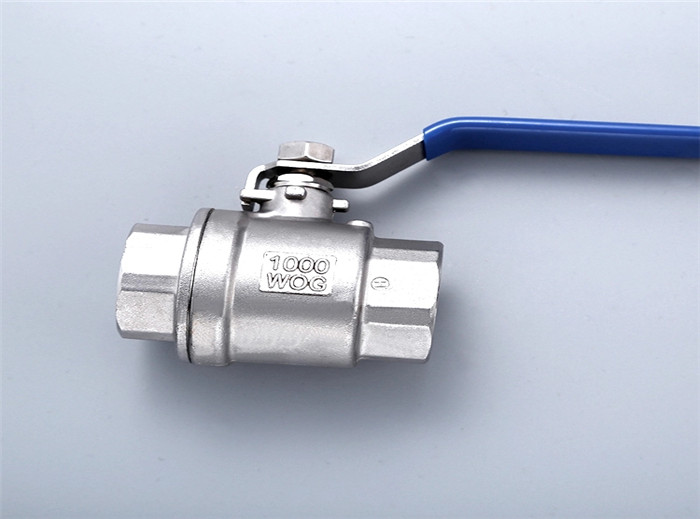

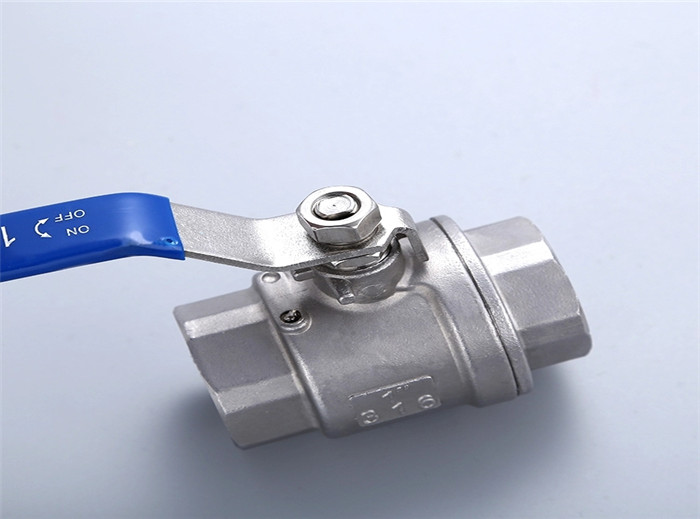

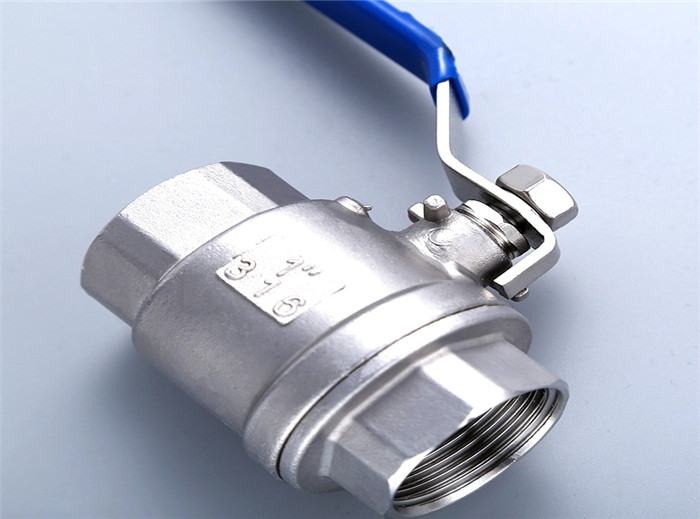

2PC threaded Ball Valve
  • 2PC threaded Ball Valve
  • 2PC threaded Ball Valve
  • 2PC threaded Ball Valve
  • 2PC threaded Ball Valve
2PC threaded Ball Valve2PC threaded Ball Valve2PC threaded Ball Valve2PC threaded Ball Valve

Product Name:2PC threaded Ball Valve

Types:2PC Threaded

Inquire Now

Previous

None

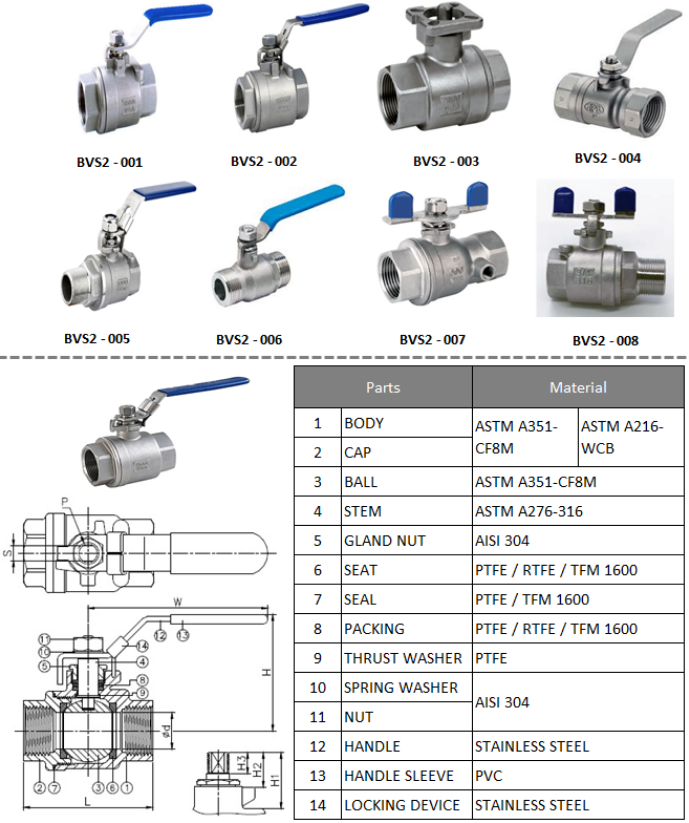

2PC Threaded Ball Valve

Pressure: 1000 WOG/2000 WOG
Port: Full Port
Blow-out Proof Stem
ISO 5211 Mounting Pad
Size: 1/4"-4"
Body: CF8M, CF8, ASTM A216 WCB
Seat: RTFE / PTFE
End: Threaded NPT, BSP, BSPT, DIN, ISO, Butt Weld, Socket Weld
Operation: Handle Lever
Option: Lockable Handle
Suitable medium: Water, oil, air and some corrosive liquid
Temperature: -20~232°C
Design: ANSI B16.34
Check and testing: API 508

2PC threaded Ball Valve
