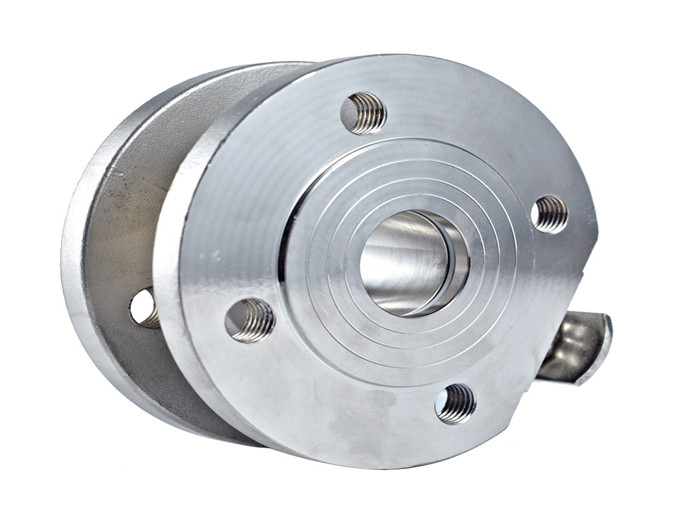

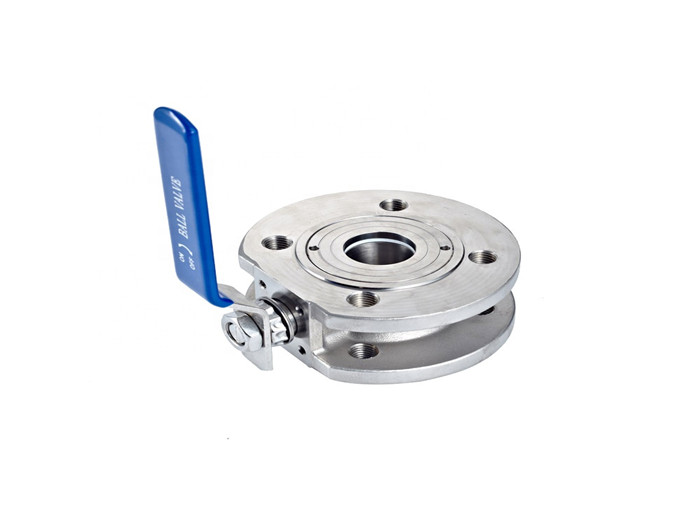

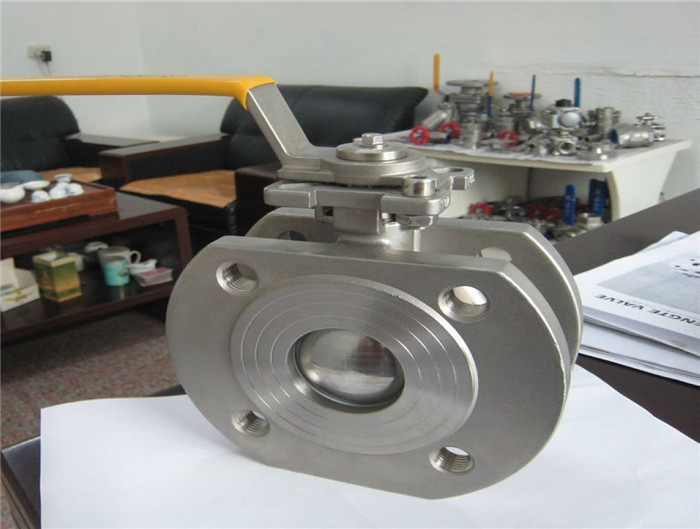

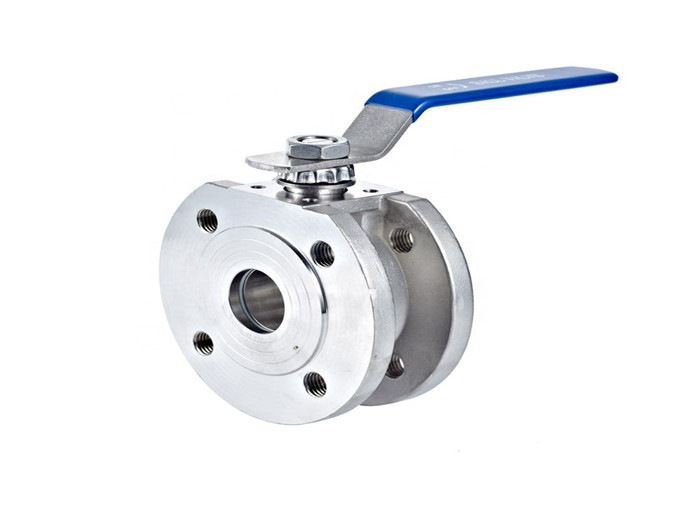

Wafer Type Ball Valve
Advantages
Blow out proof stem design
Full port design
ISO5211 direct mounting pad
Flange Standard:DIN
Various sealing materials and carbon steel options
Wafer ball valve structure simple, small size, light weight.
Specification
1. Size: 1/2'' -6''
2. Working Pressure: PN16-40
3. Body Material: WCB, CF8, CF8M

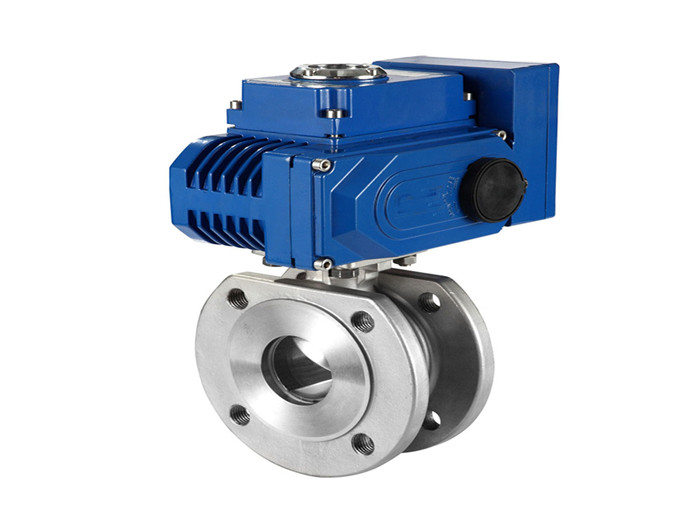

4. Operation: Manual, electric, pneumatic
5. Design & Manufacture Acc: ASME B16.34
6. End Connection Std: ASME B16.5, JISB2212/JISB2214, DIN2543-2544
7. Testing Standard: API598
Application:
Chemical, petrochemical, metallurgy, medicine, food and other industries
If you need to know more details, please send us an email to: sales@gostarcn.com
