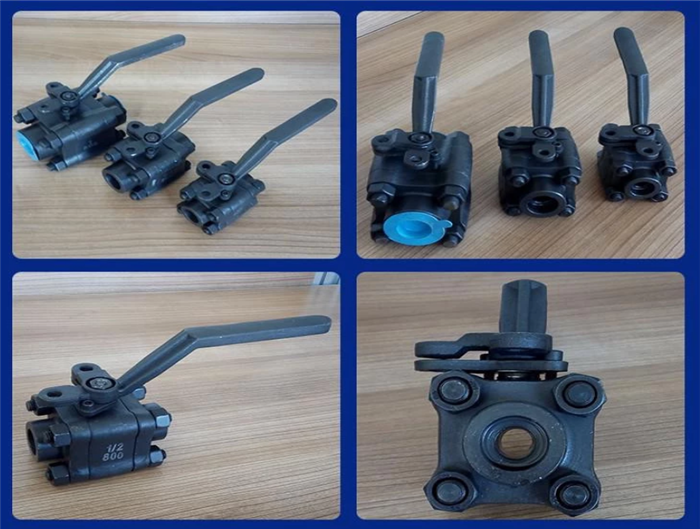

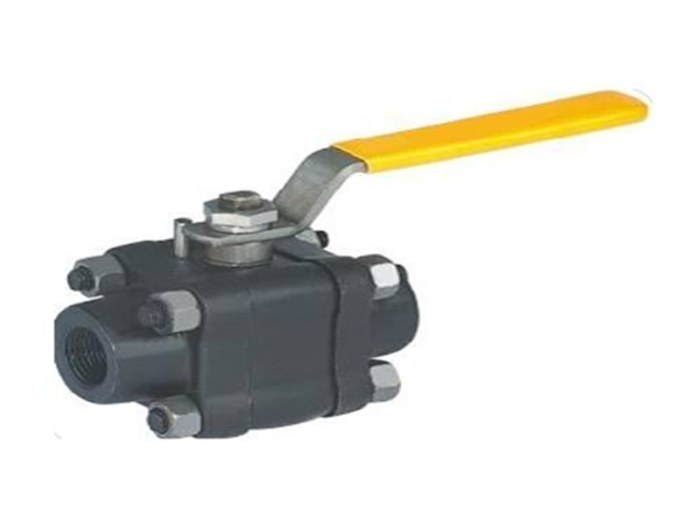

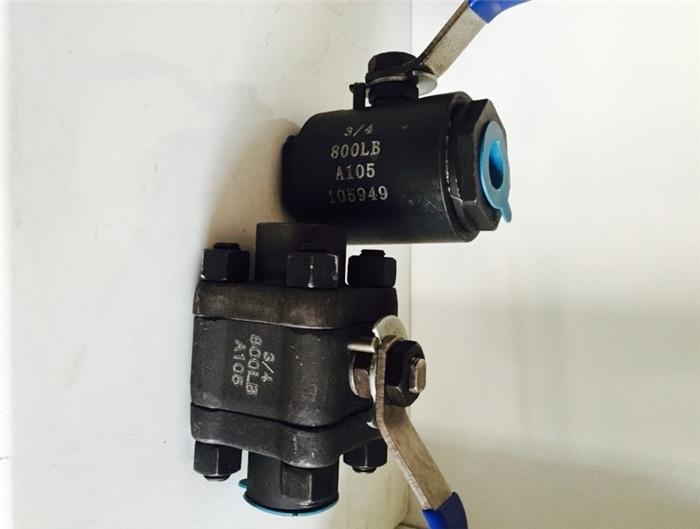

Forged Three way Ball Valve
| 1.SIZE | DN8-DN50 (1/4 to 2 inch) |
| 2.Material | CF3M, CF8, CF8M, WCB |
| 3.Pressure | 800-1500LB |
| 4.Connect end | Forged |
| 5.Thread ends | butt weld |
| 6.Seat | PTFE, PTFE+15%Glass, PTFE+25%Carbon, PPL |
| 7.Body & Cap | Investment Casing |
| 8.Test | API598, 100% tested under water and gas |
| 9. | ISO and CE Certification |
| 10.media | Water, oil, gas, acid, steam, ect |
| 11. Applicable temperature | -20 ~ 180°C (RPTFE), -20 ~250 °C (PPL) |
| 12.Locking device | Optional |
| 13. | Blot-out proof stem |
| 14. | Reduce port ball valve |
| 15. | Testing according to API-598 |
| 16. | Anti-static debices for ball-stem-body |
| Item | Part | Material | ||
| 1 | Body | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 2 | Cap | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 3 | Ball | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 4 | Seat | PTFE, RTFE | PTFE, RTFE | PTFE, RTFE |
| 5 | Stem | ANSI 316 | ANSI 304 | ANSI 304 |
| 6 | Thrust washer | PTFE | PTFE | PTFE |
| 7 | Packing | PTFE | PTFE | PTFE |
| 8 | Gland nut | ANSI 304 | ANSI 304 | ANSI 304 |
| 9 | Handle | ANSI 430 | ANSI 430 | ANSI 430 |
| 10 | Washer | ANSI 301 | ANSI 301 | ANSI 301 |
| 11 | Nut | ANSI 304 | ANSI 304 | ANSI 304 |
If you need to know more details, please send us an email to: sales@gostarcn.com
