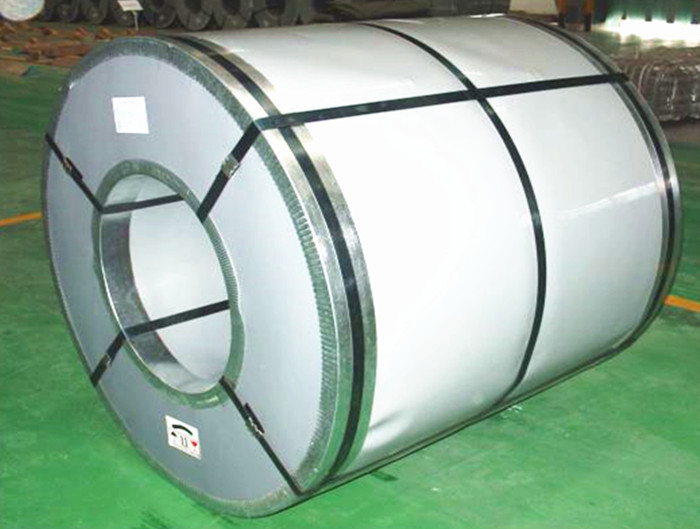

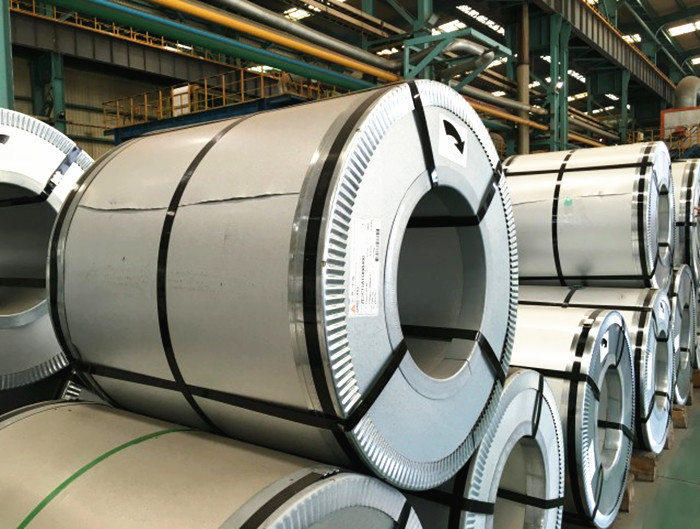

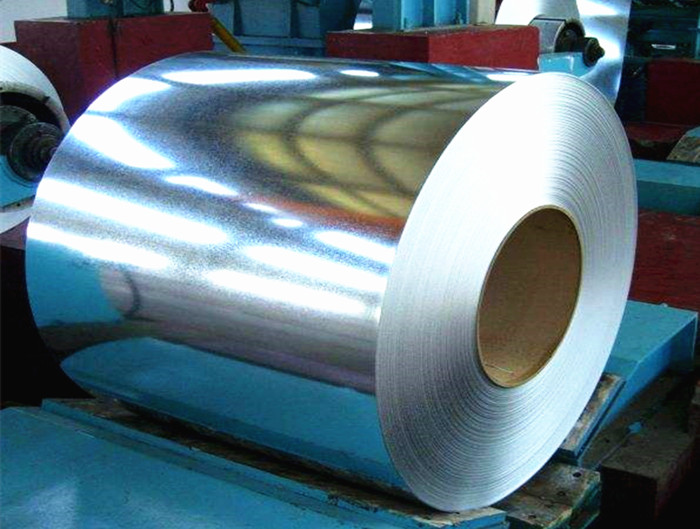

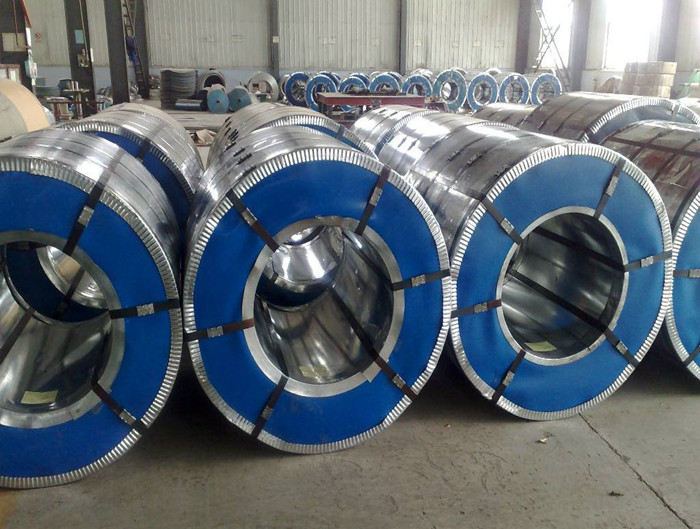

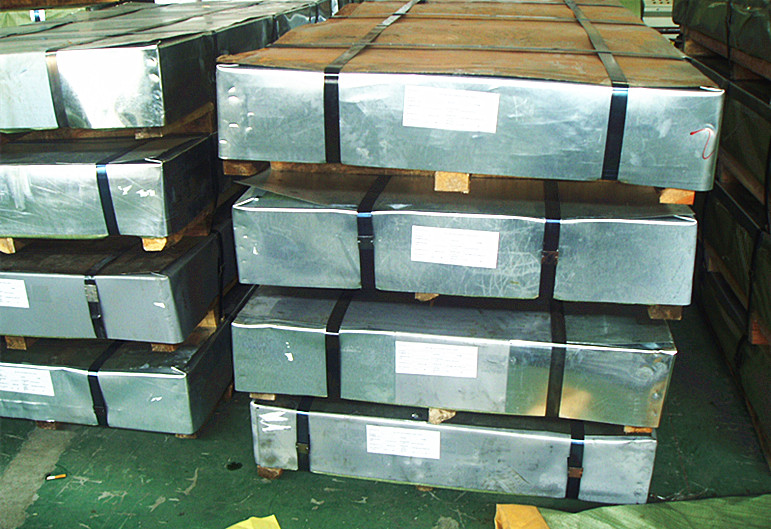

Types:Regular/Minimized/Zero Spangle
Hot Dipped Galvanized Coil and sheet
| Specifications | JIS G3302 1998 | SGCC |
| SGC340, SGC400, SGC490, SGC570, SGCH | ||
| SGCD1, SGCD2, SGCD2 | ||
| SGHC, SGH340, SGH400, SGH490 | ||
| ASTM A653M 2003 | CS TYPE A, CS TYPE B, CS TYPE C | |
| FS TYPE A, FS TYPE B | ||
| SS GR230, SS GR255, SS GR275, SS GR340, SS GR550 | ||
| DDS, EDDS | ||
| AS 1397 2001 | G1, G2, G3 | |
| G250, G300, G350, G450, G550 | ||
| EN10327 2004 EN10143 1993 | DX51D, DX52D, DX53D | |
| EN10326 2004 EN10143 1993 | S220GD, S250GD, S280GD, S320GD, S350GD, S550GD | |
| Steel Thickness (mm) | 0.2~4.5 | |
| Width (mm) | 600~1550 | |
| Coating Mass | JIS G3302 1998 | Z08, Z12, Z18, Z20, Z22, Z25, Z27, Z35, Z45 |
| ASTM A653M | Z80, Z120, Z180, Z200, Z220, Z250, Z275, Z350, Z450 | |
| AS 1397 2001 | Z100, Z200, Z275, Z200, Z350, Z450 | |
| EN10326/10327 | Z100,Z140, Z200, Z225, Z275, Z350, Z450 | |
| Spangle | Regular Spangle, Minimized Spangle, Extra-Smooth | |
| Chemical Surface Treatment | Chromating Treatment, Oiled or Anti-finger print | |
Remarks:
1. Tolerance for thickness,width,flatness,etc can conform to the individual product specification.
2. Coil I.D can be either 508mm or 610mm,Max.coil O.D is 2000mm.
3. Weight of a single coil can be from 3~10tons.
4. Special Request need to check with our sales team.
If you need to know more details, please send us an email to: sales@gostarcn.com
