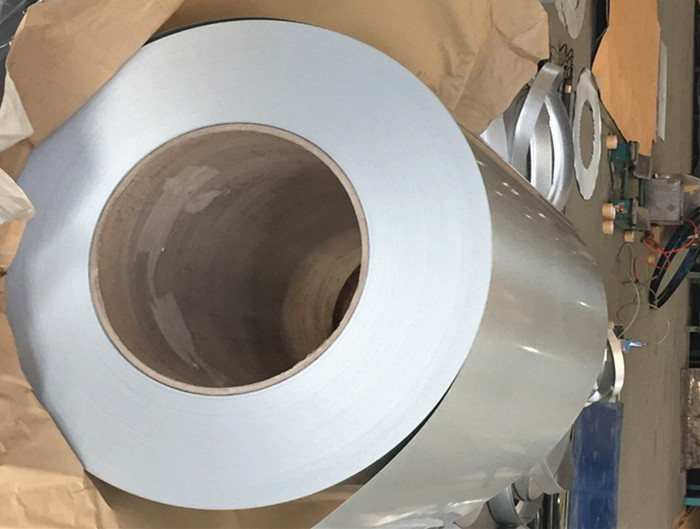

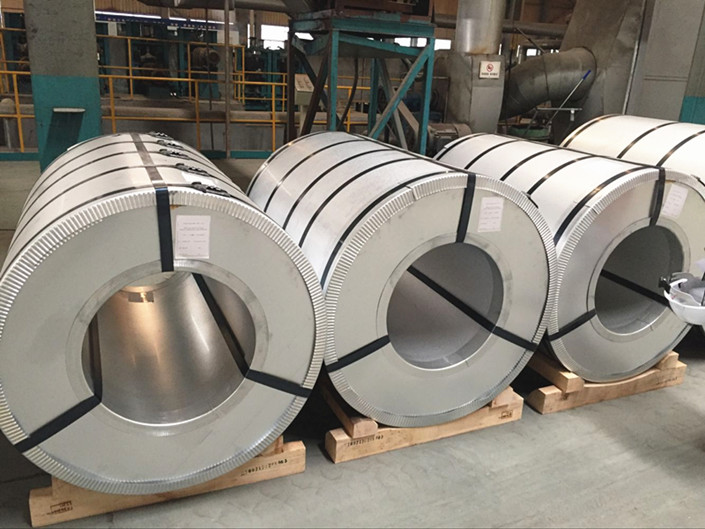

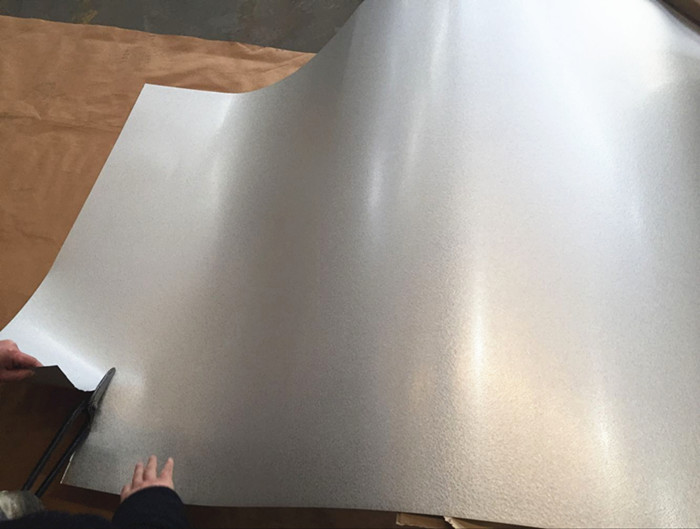

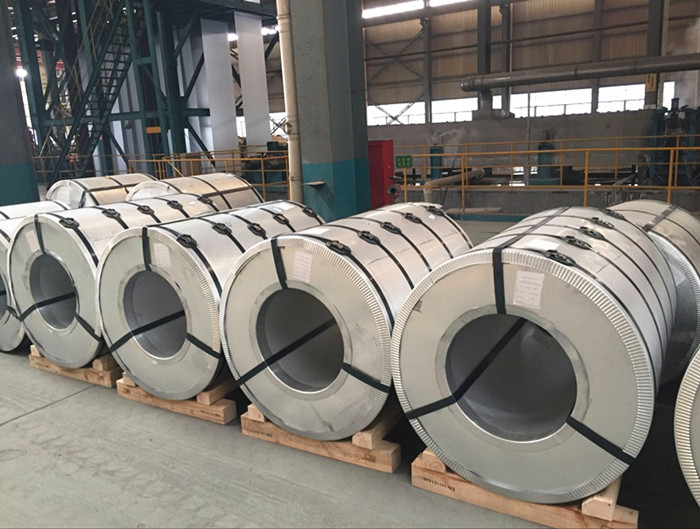

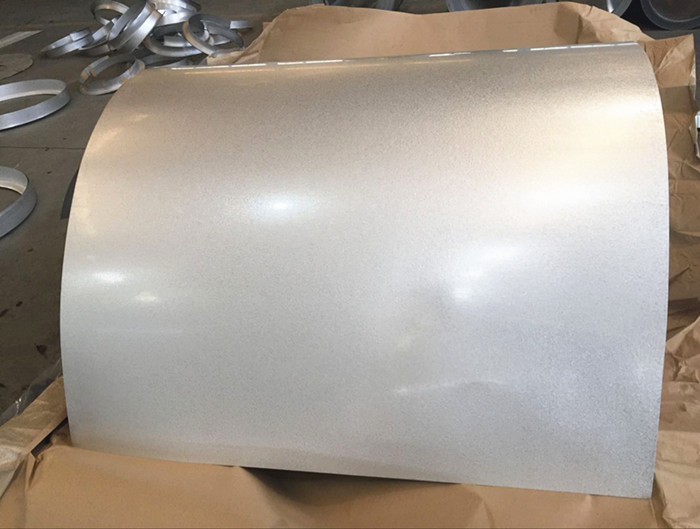

Galvalume(55% Al-Zn) Coil and Sheet (Aluzinc)
| Specifications | JIS G3321 1998 | SGLCC,SGL400,SGL440,SGL570 |
| SGLCD | ||
| ASTM A792M 2003 | CS TYPE A, B, C, FS | |
| DS | ||
| SS GRADE 230, 255, 275, 340, 550 | ||
| EN10327 2004 | DX51D, DX52D, DX53D | |
| EN10326 2004 | SS220GD, SS250GD, SS280GD, SS320GD, SS3500GD, SS550GD | |
| Steel Thickness (mm) | 0.2~3.0 | |
| Width (mm) | 600~1550 | |
| Coating Mass | JIS G3321 1998 | AZ50, AZ90, AZ120, AZ150, AZ170 |
| ASTM A792M 2003 | AZM70, AZM90, AZM100, AZM150, AZM165, AZM180 | |
| EN10326 / 10327 | AZ50, AZ100,AZ150 | |
| Spangle | Regular Spangle, Minimized Spangle, Skin pass | |
| Chemical Surface Treatment | Chromating Treatment, Oiled or Anti-finger print | |
Remarks:
1. Tolerance for thickness,width,flatness,etc can conform to the individual product specification.
2. Coil I.D can be either 508mm or 610mm,Max.coil O.D is 2000mm.
3. Weight of a single coil can be from 3~10tons.
4. Special Request need to check with our sales team.
