| Material | Malleable Iron, Ductile iron, Grey iron |
| Standard | Thread: BSPT(ISO 7/1), NPT(ANSI B1.20.1) |
| Dimension: ASME B16.3, ASME B16.14, ASME B16.39, BS EN 10242, BS143, BS1256 ISO 49, DIN 2985 | |
| Chemical Propety | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical Property | Tensile strength>=350Mpa, Elongation>=10%, Hardness<=150HB |
| Testing Pressure | 2.5MPa |
| Working Pressure | 1.6MPa |
| Head shape | Beaded or Banded |

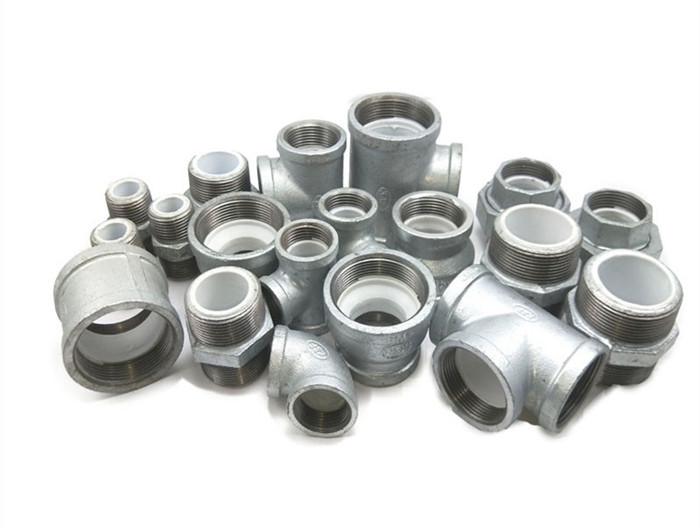

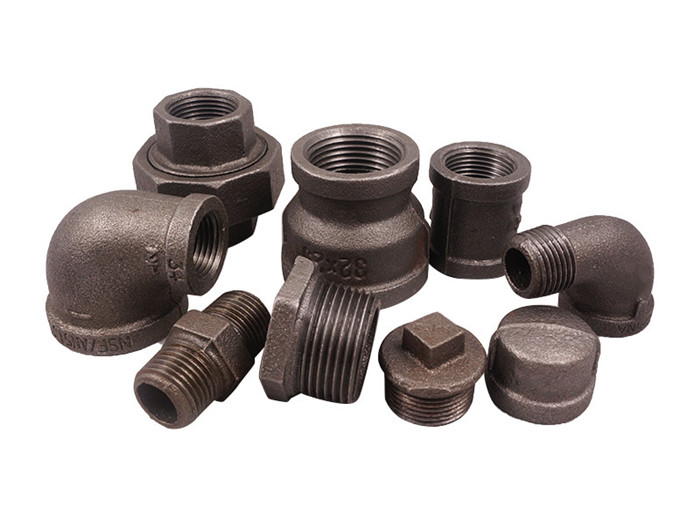

| Surface | Galvanized/Black |
| Color | Expoxy power, Red, White, Blue, Yellow, Green |

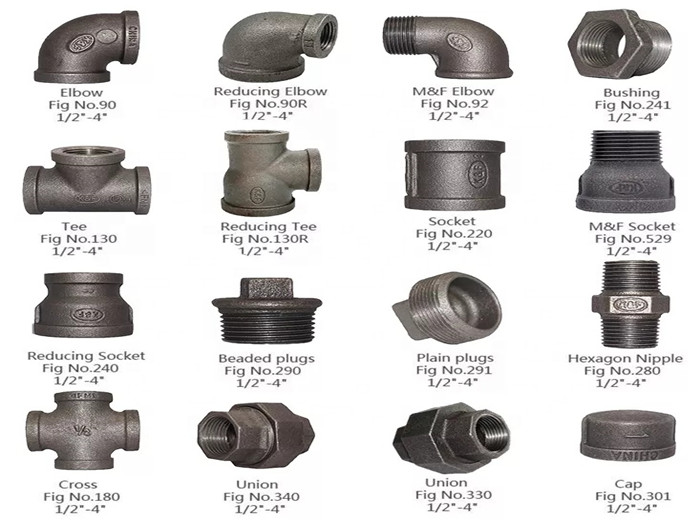

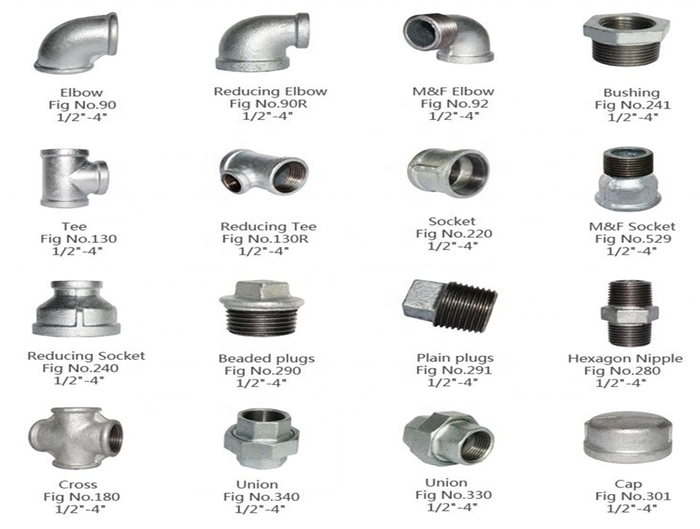

| Model | Elbow, Tees, Crosses, Bends, Unions, Bushing, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges, Side outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female threaded |
| Shape | Equal, Reducing |
| Application | Suitable for fire piping system, air, steam, water, gas, oil, home decoration, equipment, etc.. |
| Packing | Carton with pallets or double woven bags |
