Stainless steel threaded casting 150LBS fittings

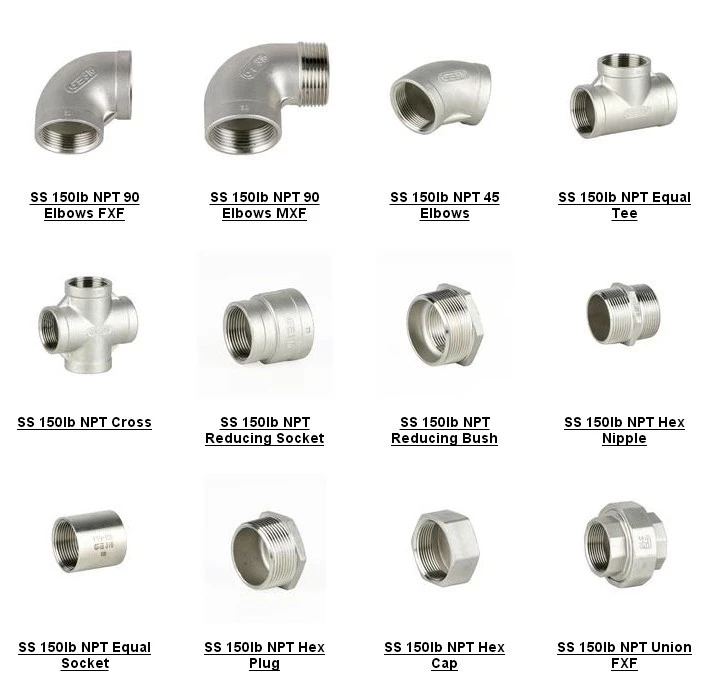

| Products | Elbow, Tees, Crosses, Bends, Unions, Bushing, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges, Side outlet Tees, Side Outlet Elbows, etc. |
| Material | Stainless steel 304/ 304L/316/316L/201 |
| Sizes: | 1/8", 1.4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2, 2.1/2", 3", 4" (inch) |
| Processing | Casting |
| Threaded Standard | BSPT (ISO 7/1), NPT (ASME B16.3) |
| Dimension: | ISO 49, DIN 2950, EN10242 |
| Physical Property | Tensile strength>=350Mpa, Elongation>=10%, Hardness<=150HB |
| Testing Pressure | 2.5MPa |
| Working Pressure | 1.6MPa |
| Applicable Medium | Liquid, Oil, Gas, Vapor |
| Scope of Application | Household fittings, auto parts, medical equipment, building materials, chemicals, food industry, agriculture, ship parts, etc. |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | CE, AS4020, BSI, ANAB, ISO9001 |
| Application | Suitable for fire piping system, air, gas, oil and so on |
| Others: | Buyer's drawing or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer's requirements |
If you need to know more details, please send us an email to: sales@gostarcn.com
