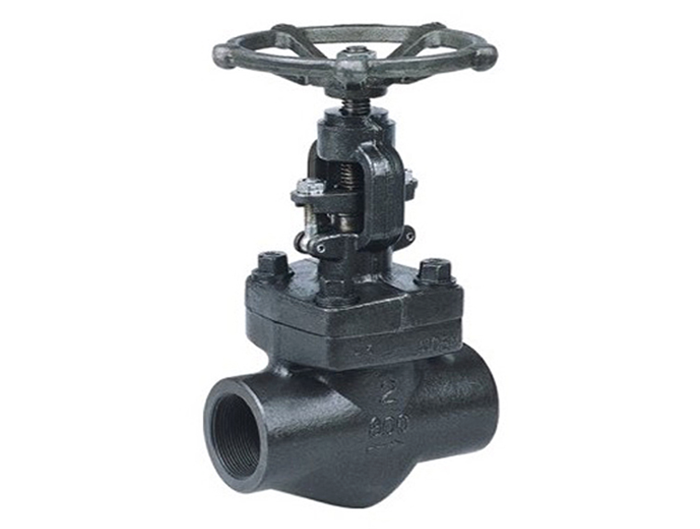

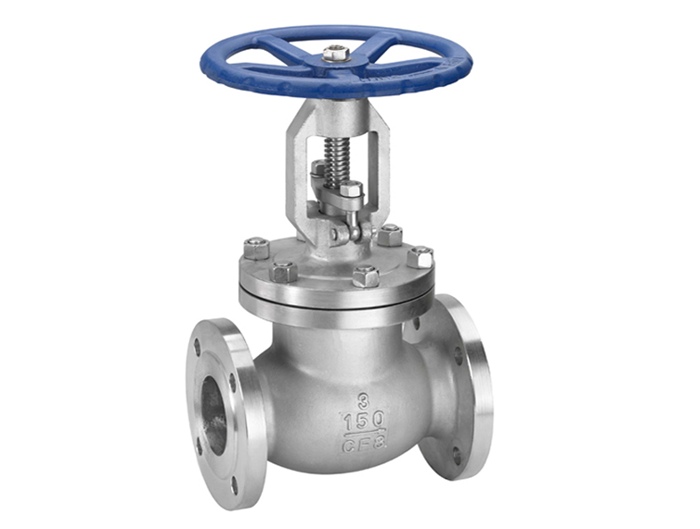

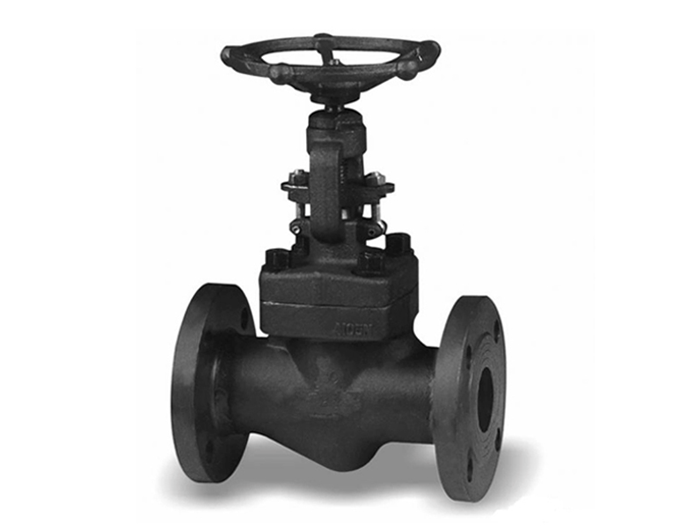

Forged Globe Valve
  • Forged Globe Valve
  • Forged Globe Valve
  • Forged Globe Valve
Forged Globe ValveForged Globe ValveForged Globe Valve

Product Name:Forged Globe Valve

Types:Socked welded/Flanged end

Inquire Now

None

Next

Applicable Temperature: ≤425 ºC

Main Materials: WCB/CF8/CF8M/CF3/CF3M

Applicable Medium: Water / Oil / Gas / Causticity Medium

Pressure Rating: PN10-PN100, 150LB-1500LB

Size Range: 1/2" ~ 12"(DN15-DN300)

ITEMPARTMATERIAL
1BODYCF8M/CF3MCF8/CF3WCB
2DISCCF8M/CF3MCF8/CF3WCB
3HALF RING304
4DISC COVERCF8M/CF3MCF8/CF3WCB
5BOLTA193-B8
6GASKETPTFE
7NUTA194-8
8STEM PACKINGPTFE
9BONNETCF8M/CF3MCF8/CF3WCB
10STEM316304304
11WHEEL HANDLEFCD
12STEM NUTA194-8
13WASHER301
14SMALL BOLT301
15NUTA194-8
16EYE BOLT304
17LOCKING PIN304


If you need to know more details, please send us an email to: sales@gostarcn.com
