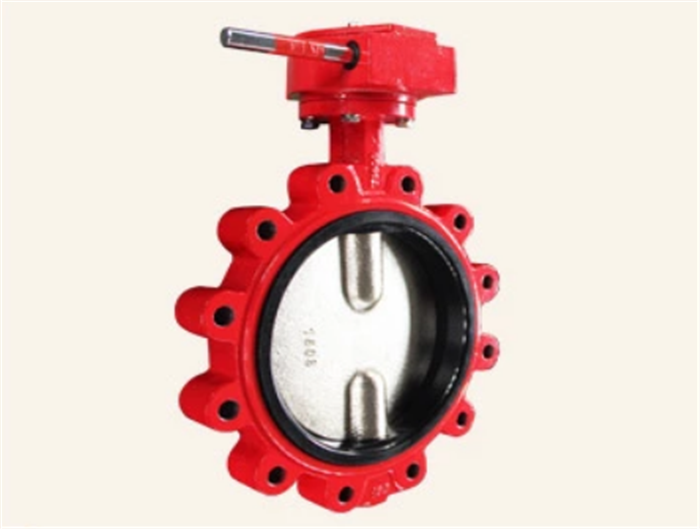

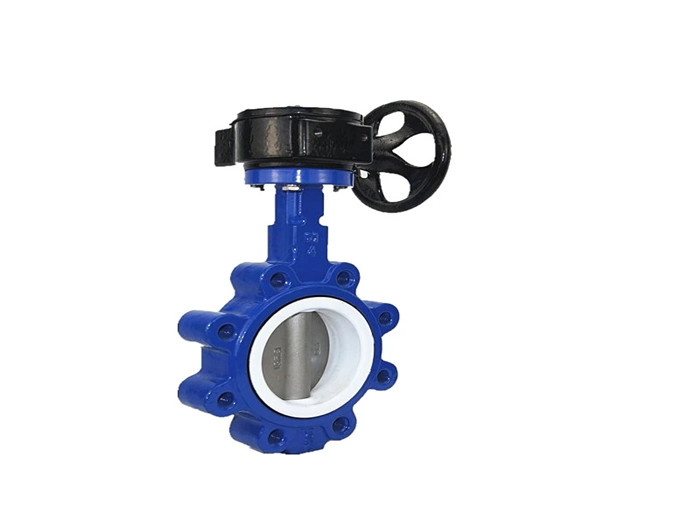

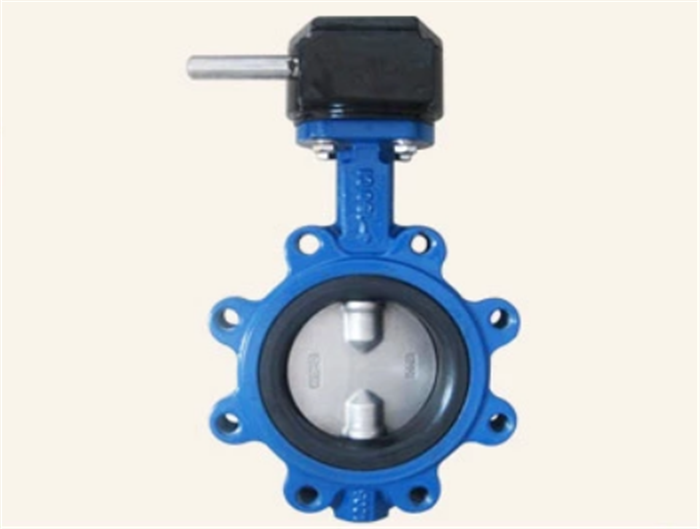

Lug Type Butterfly Valve
  • Lug Type Butterfly Valve
  • Lug Type Butterfly Valve
  • Lug Type Butterfly Valve
Lug Type Butterfly ValveLug Type Butterfly ValveLug Type Butterfly Valve

Product Name:Lug Type Butterfly Valve

Types:Lug Type

Inquire Now

Previous

None

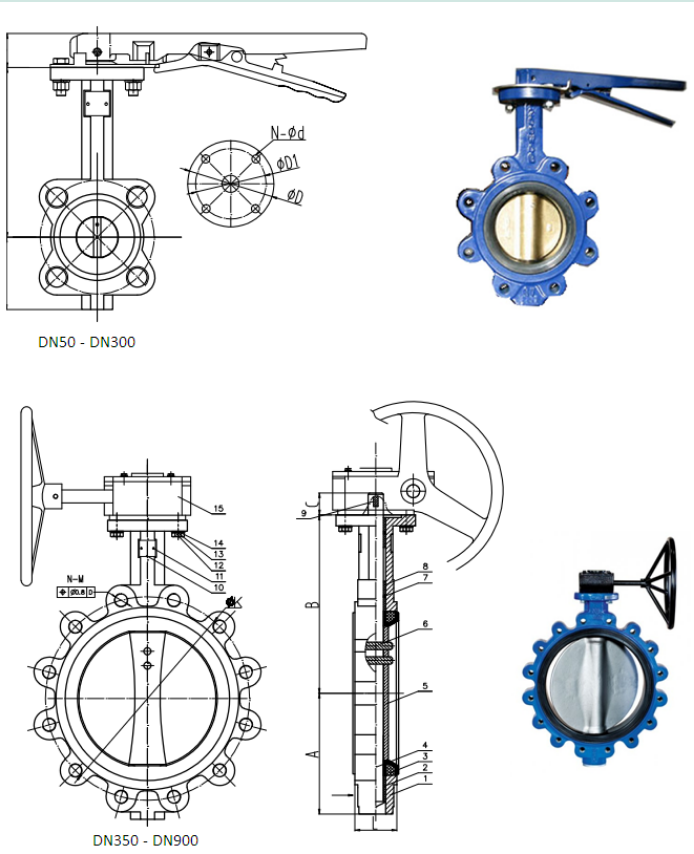

Size: 2’’ – 36’’ (DN50-DN900)

With Level operation: DN50-DN300

With Gear operation: DN350-DN900

Pressure: PN10, PN16

Material:

Body: Cast Iron ASTM A126

Disc: Ductile Cast Iron ASTM A536, Stainless steel ASTM A351

Stem: Stainless steel ASTM A433, Carbon Steel

Bushing: Lubricated Bronze ASTM B438, PTFE, Taflon

Seat: EPDM, BUNA, PTFE, Neoprene

Pin: Stainless steel ASTM A433

"O" Ring: EPDM, BUNA

Options: Lever, Gear Box, Actuators (Electric, Pneumatic)

Lug Type Butterfly Valve

If you need to know more details, please send us an email to: sales@gostarcn.com
