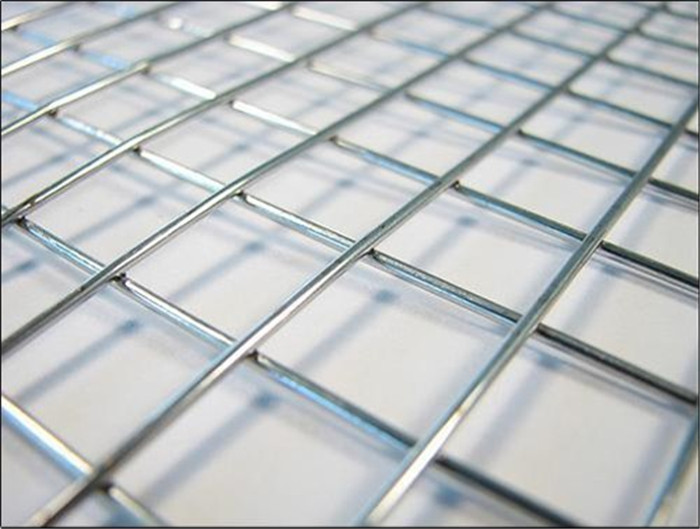

Welded Wire Mesh Style:
· Electro or Hot dipped galvanized after or before welding
· Stainless steel wire welded wire mesh

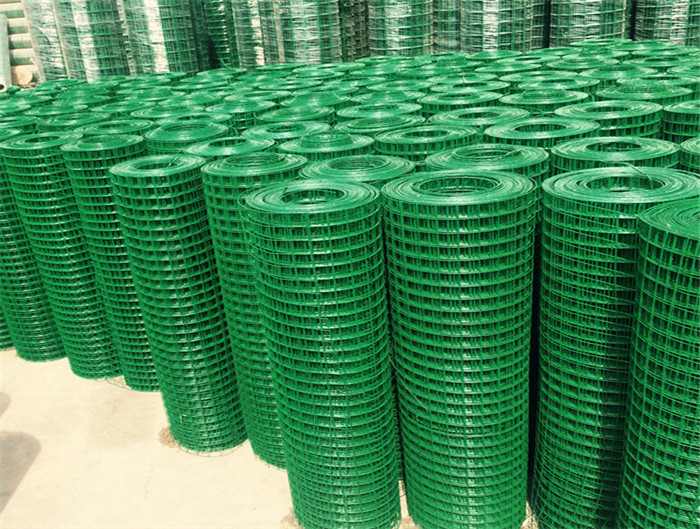

· PVC coated galvanized welded wire mesh
· Black wire/ no coated welded wire mesh
Welded Wire Mesh Features
· Welded Wire Mesh is made of high quality stainless or steel wire.
· Welded Wire Mesh has various configurations and sizes.
· Used for the loose strata to avoid falling rocks.
· Suitable for shotcrete applications
· Range of sizes to suit roadway width and bolting patterns.
· Easy installation
· Available in black or hot dipped galvanized
Welded Wire Mesh Application:
used in industry and agriculture building, Transportation and mining for all such purposes as poultry houses, Egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence, Mink Cages.

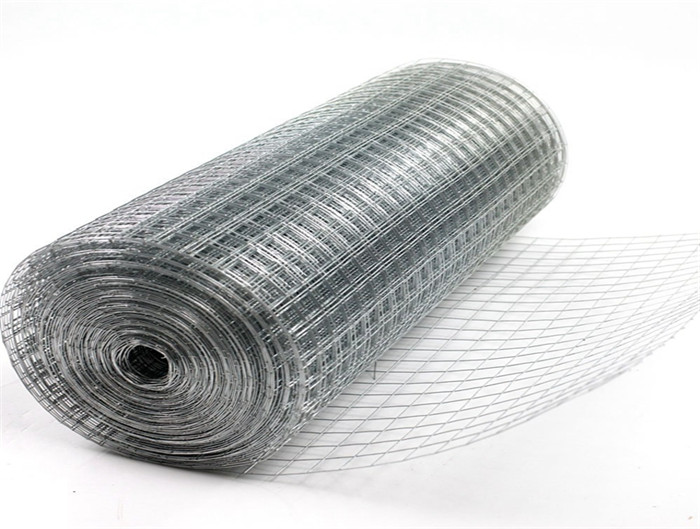

| Standard welded wire mesh Roll (In 30 m Length, Width of 0.2m-1.8m) | ||
| Mesh | Wire Gauge | |
| (Inch) | (mm) | (BWG) |
| 1/4×1/4 | 6.4×6.4 | 22/23/24 |
| 3/8×3/8 | 10.6×10.6 | 19/20/21/22 |
| 1/2×1/2 | 12.7×12.7 | 16/17/18/19/20/21/22/23 |
| 5/8×5/8 | 16×16 | 18/19/20/21 |
| 3/4×3/4 | 19.1×19.1 | 16/17/18/19/20/21 |
| 1×1/2 | 25.4×12.7 | 16/17/18/19/20/21 |
| 1-1/2×1-1/2 | 38×38 | 14/15/16/17/18/19 |
| 1×2 | 25.4×50.8 | 14/15/16 |
| 2×2 | 50.8×50.8 | 12/13/14/15/16 |
| 4×4 | 100×100 | 8/9/10 |
| Welded Fencing Mesh Panel (In 0.5-5m Length, Width of 0.5-2.5m) | ||
| Mesh | Wire Diameter | |
| (Inch) | (mm) | (mm) |
| 2×3 | 50×75 | 2.0/2.5/1.65 |
| 3×3 | 75×75 | 2.67/2.41/2.11/1.83/1.65 |
| 2×4 | 50×100 | 2.11/2.5 |
| 4×4 | 100×100 | 2.0/2.5 |
| 2×8 | 50×200 | 3.0/3.5/4.0/4.5/5.0 |

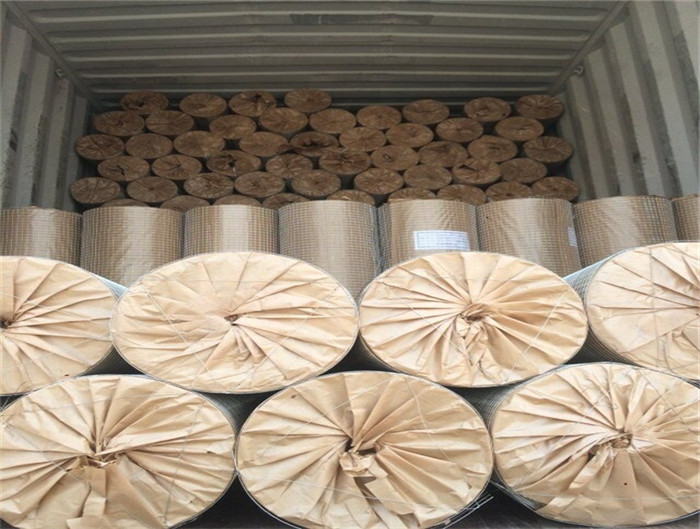

Technical Note: 1,Standard roll length: 30m; width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: In waterproof paper in rolls. Custom packing available at request. | ||
If you need to know more details, please send us an email to: sales@gostarcn.com
