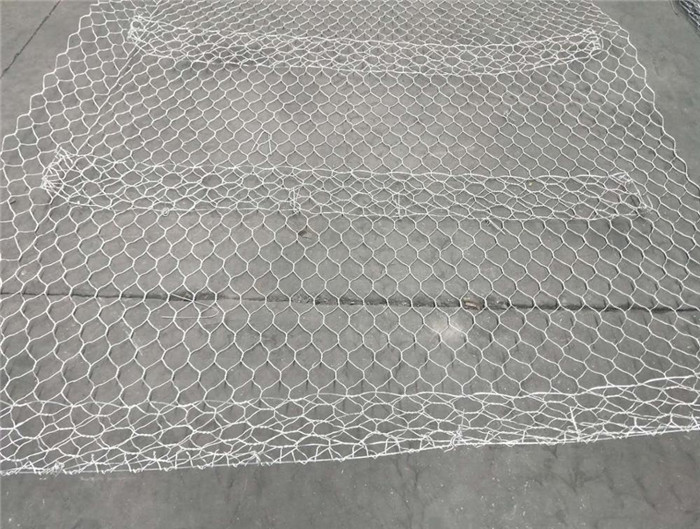

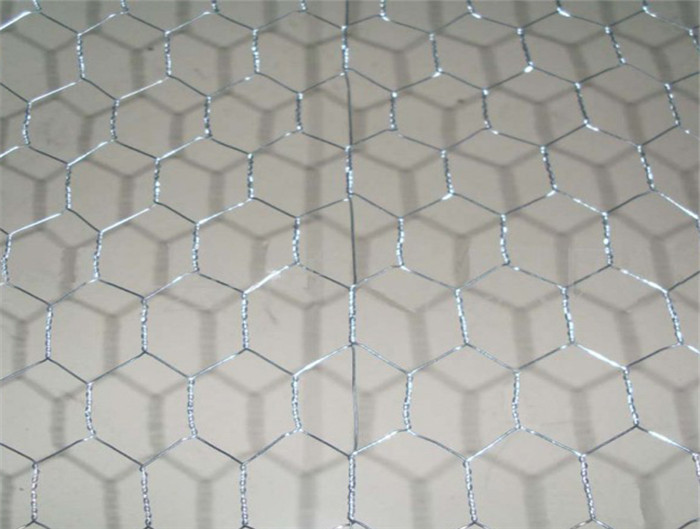

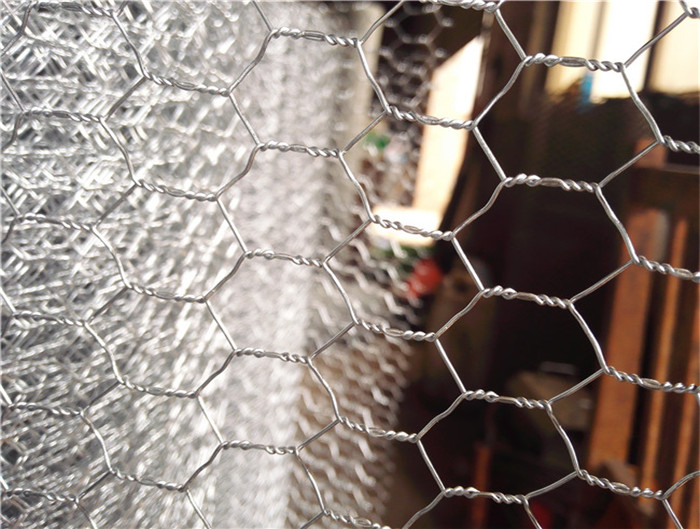

Types:Hexagonal wire mesh/chicken wire mesh
| Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20, |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |
| Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) | ||||
| Mesh | Wire Gauge(BWG) | |||
| Inch | mm | (BWG) | ||
| 1" | 25mm | 22,21,20,18 | ||
| 1-1/4" | 32mm | 22,21,20,18 | ||
| 1-1/2" | 40mm | 20,19,18 | ||
| 2" | 50mm | 20,19,18 | ||
| 3" | 75mm | 20,19,18 | ||
| Hex. wire netting PVC-coated (width of 0.5M-2.0M) | ||
| Mesh | Wire Dia(mm) | |
| Inch | mm | |
| 1/2" | 13mm | 0.9mm, 0.1mm |
| 1" | 25mm | 1.0mm, 1.2mm, 1.4mm |
| 1-1/2" | 40mm | 1.0mm, 1.2mm, 1.4mm, 1.6mm |
| 2" | 50mm | 1.0mm, 1.2mm, 1.4mm, 1.6mm |

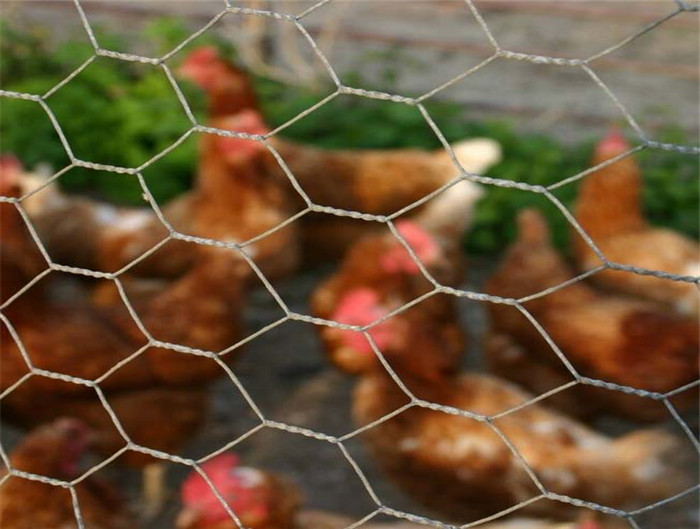

Application:Hexagonal wire mesh with its good corrosion resistance and oxidation
resistance, serves well as strengthening, protection and temperature keeping materials in
the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in
construction, chemical, breeding, garden and food processing industries.
If you need to know more details, please send us an email to: sales@gostarcn.com
